THE FOLLOWING ITEMS DO NOT COVER OUR ENTIRE RANGE.
For further information, download the following file or contact us!

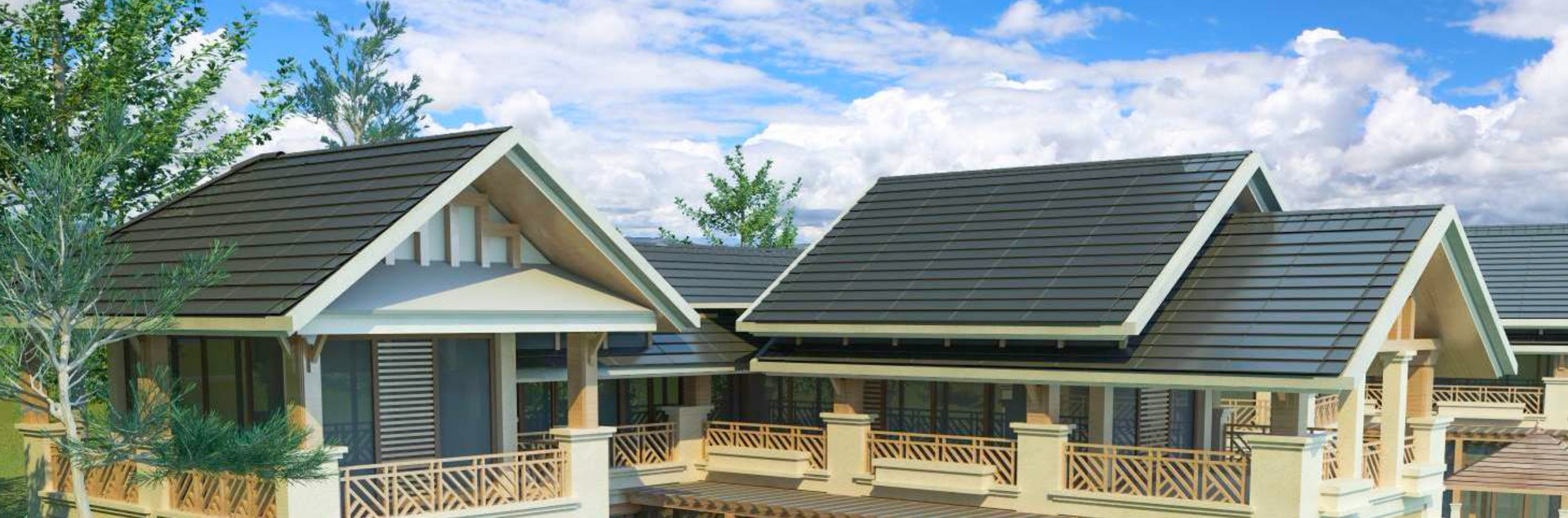

BIPV solutions for roofing and solar roof tile projects are already successfully implemented and generating energy across Europe region, Middle East and North America.
Solar roof tiles is a brilliant way for different world regions to fight CO2 emissions and lower the carbon .
Our BIPV system combine the luxur decoration and self-sufficiency green energy.

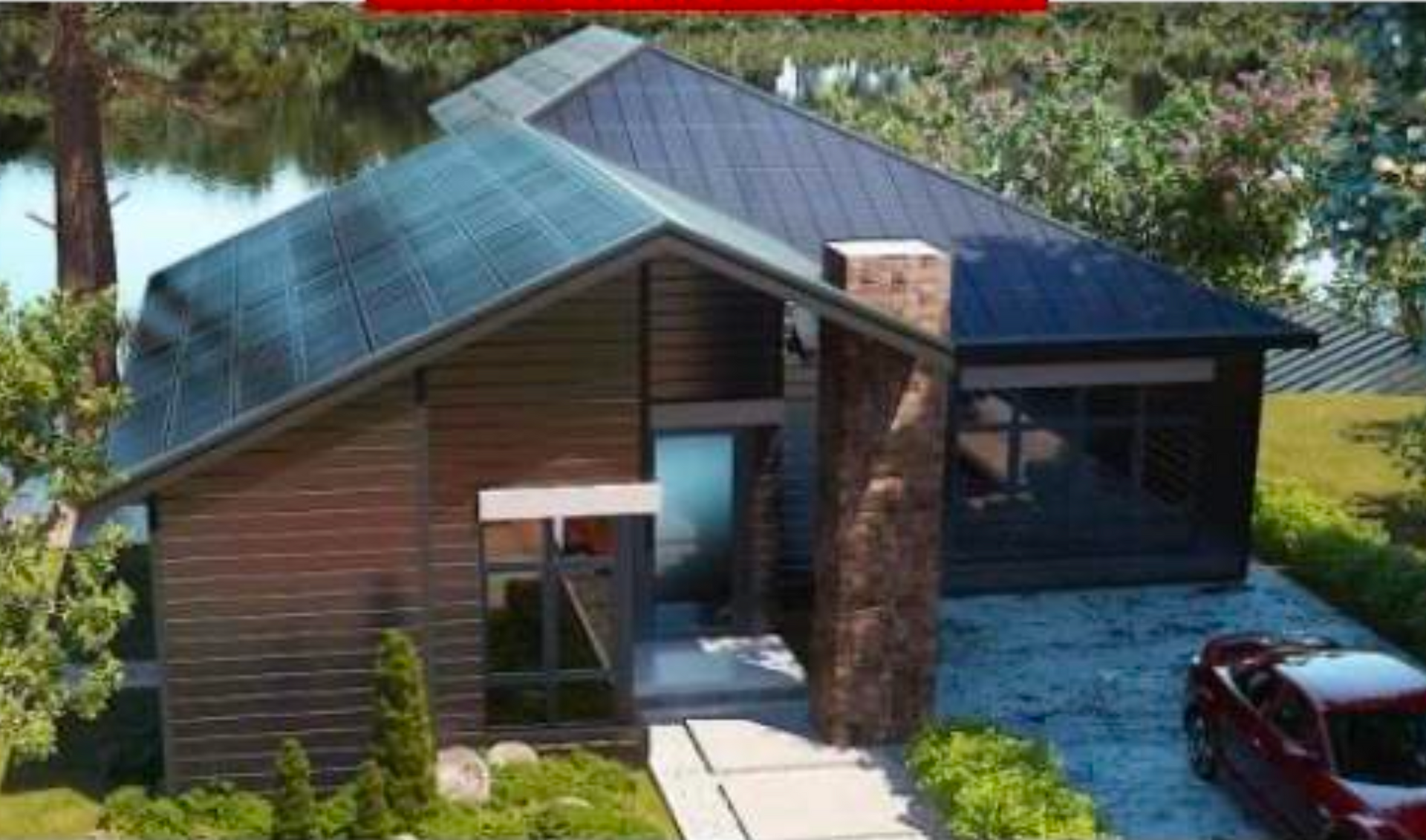

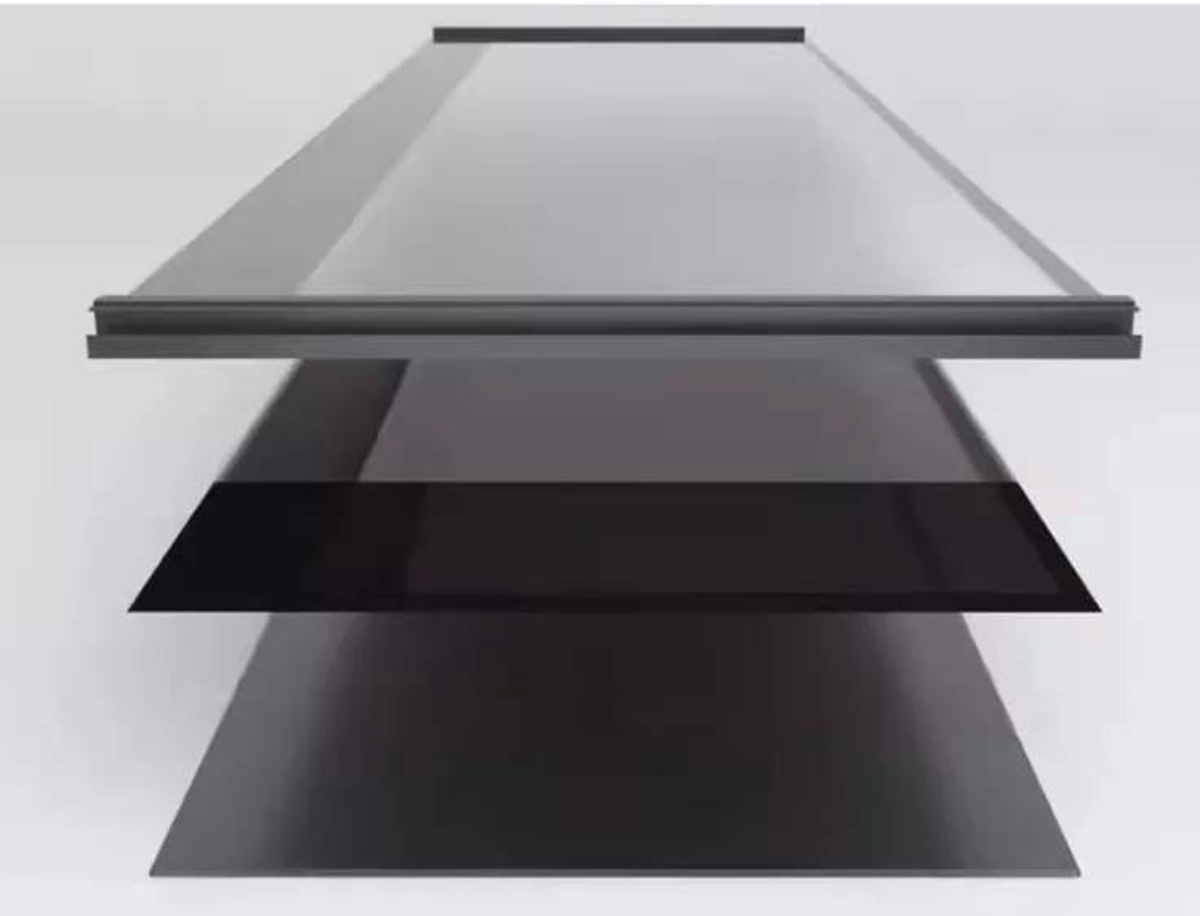

KST-G95
Glass / glass solar panels are the most commonly used technology in energy generating buildings. This technology so far has the highest durability rate against harsh environmental conditions and longer lifespan
Available Colors:
- Black
- Red
- Green
Dimensions: 1460 x 437 x 21 mm
Weight: 12 kg
Power: 95 W
Power tolerance: -3 / +2 W
Short-circuit current: 3,96 V
Open-circuit Voltage: 31,06 V
Max power point voltage: 26,46 A
Max power point current: 3,59 A
Max system voltage: 1000 V
Max series fuse rating: 20 A

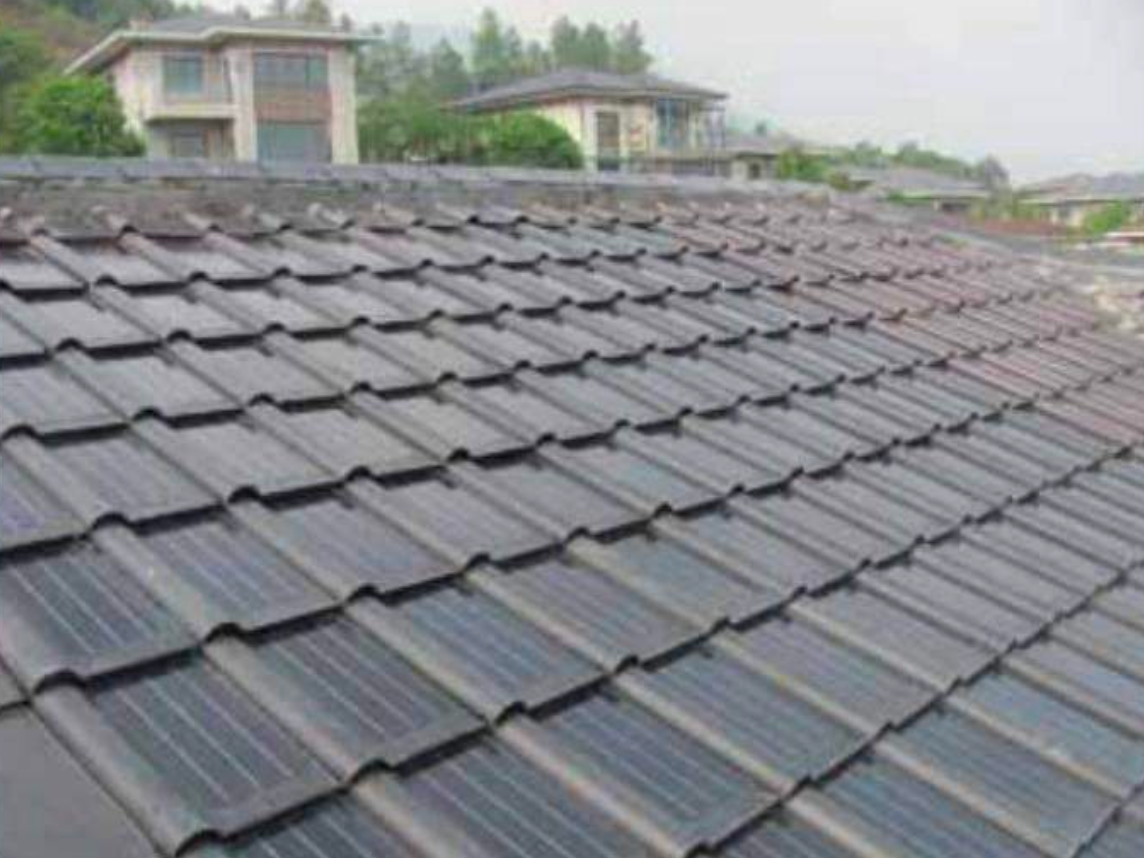

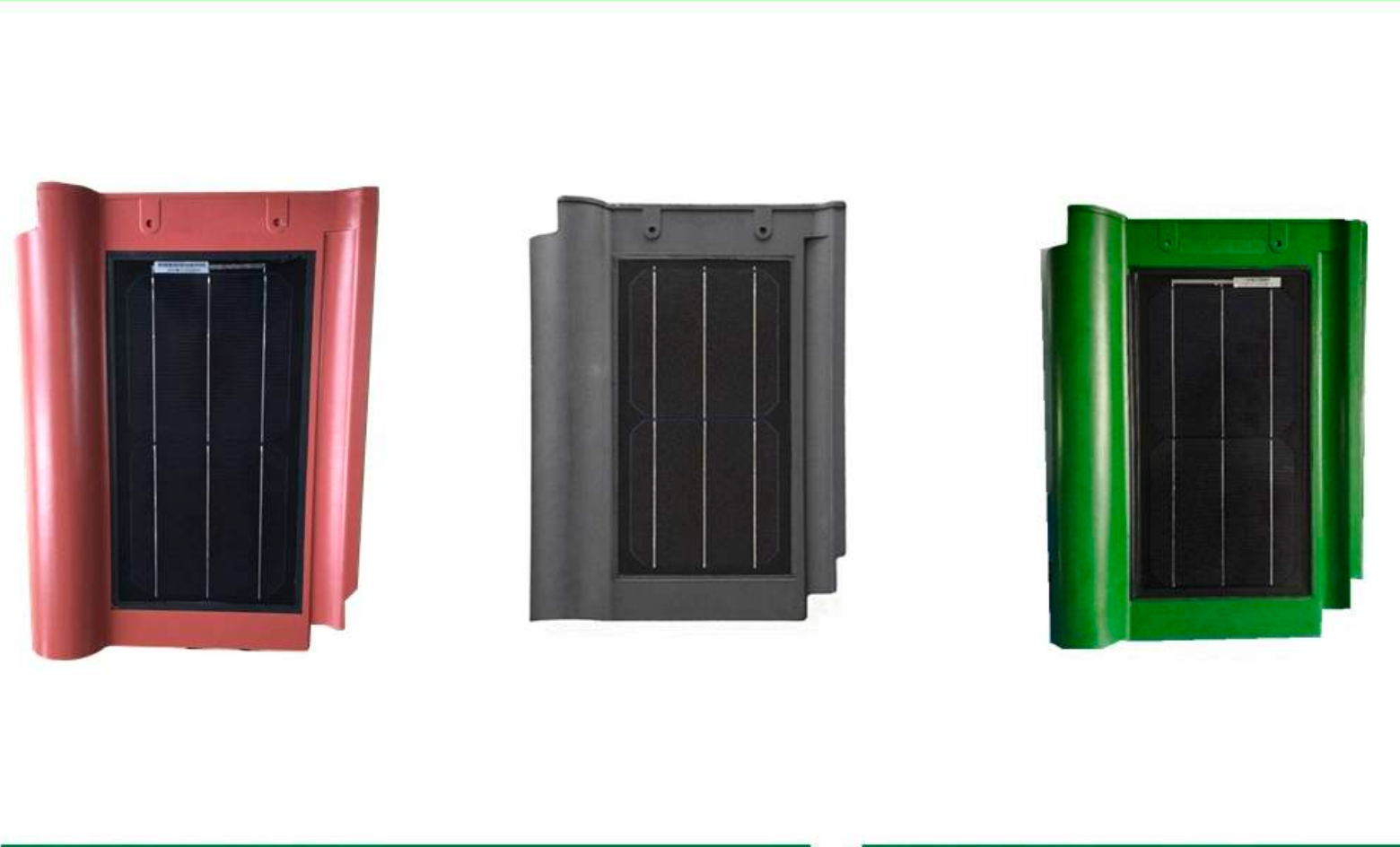

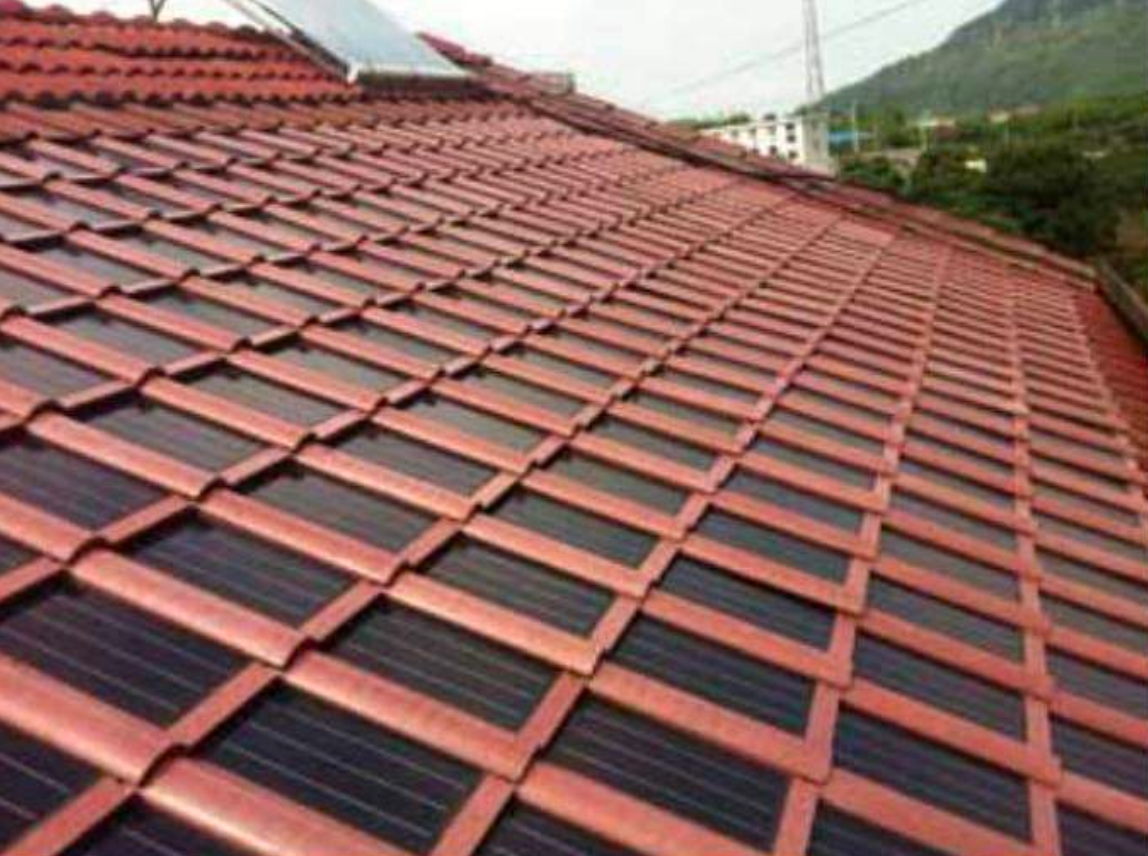

KST-C10
Available Colors: various options (see pdf file)
Dimensions: 440 x 325 x 47 mm
Weight: 2,5 kg
Max Power: 10 W
Power tolerance: +3 %
Short-circuit current: 9,00 V
Open-circuit Voltage: 1,23 V
Max power point voltage: 1,02 A
Max power point current: 8,39 A
Cell efficiency: 18 %
Cable (type, area, length): 2,5 mm2, 350 mm
Cells (number): 2
Cell size: 156 x 156 mm
Frame material: ceramic compound

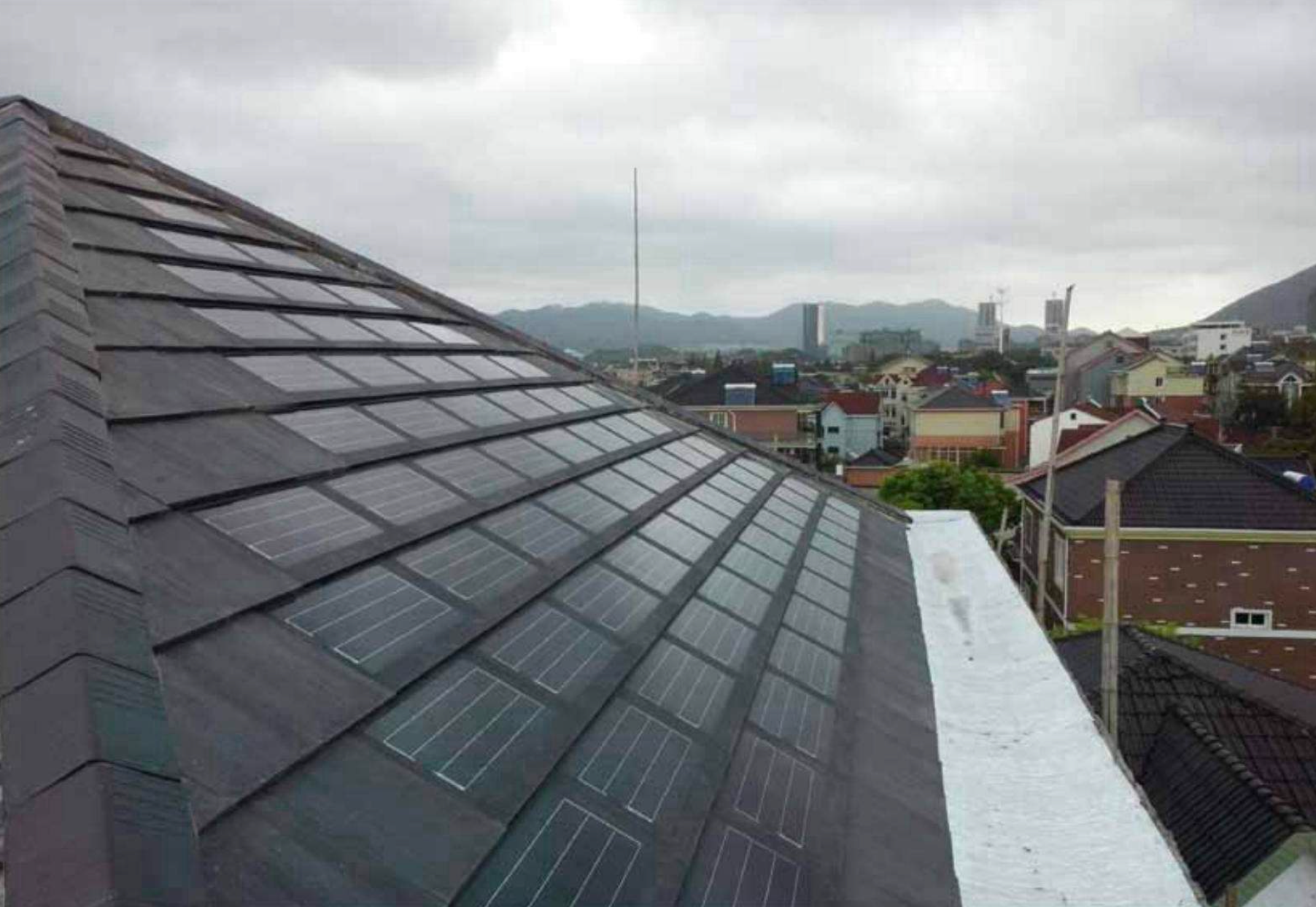

KST-C40

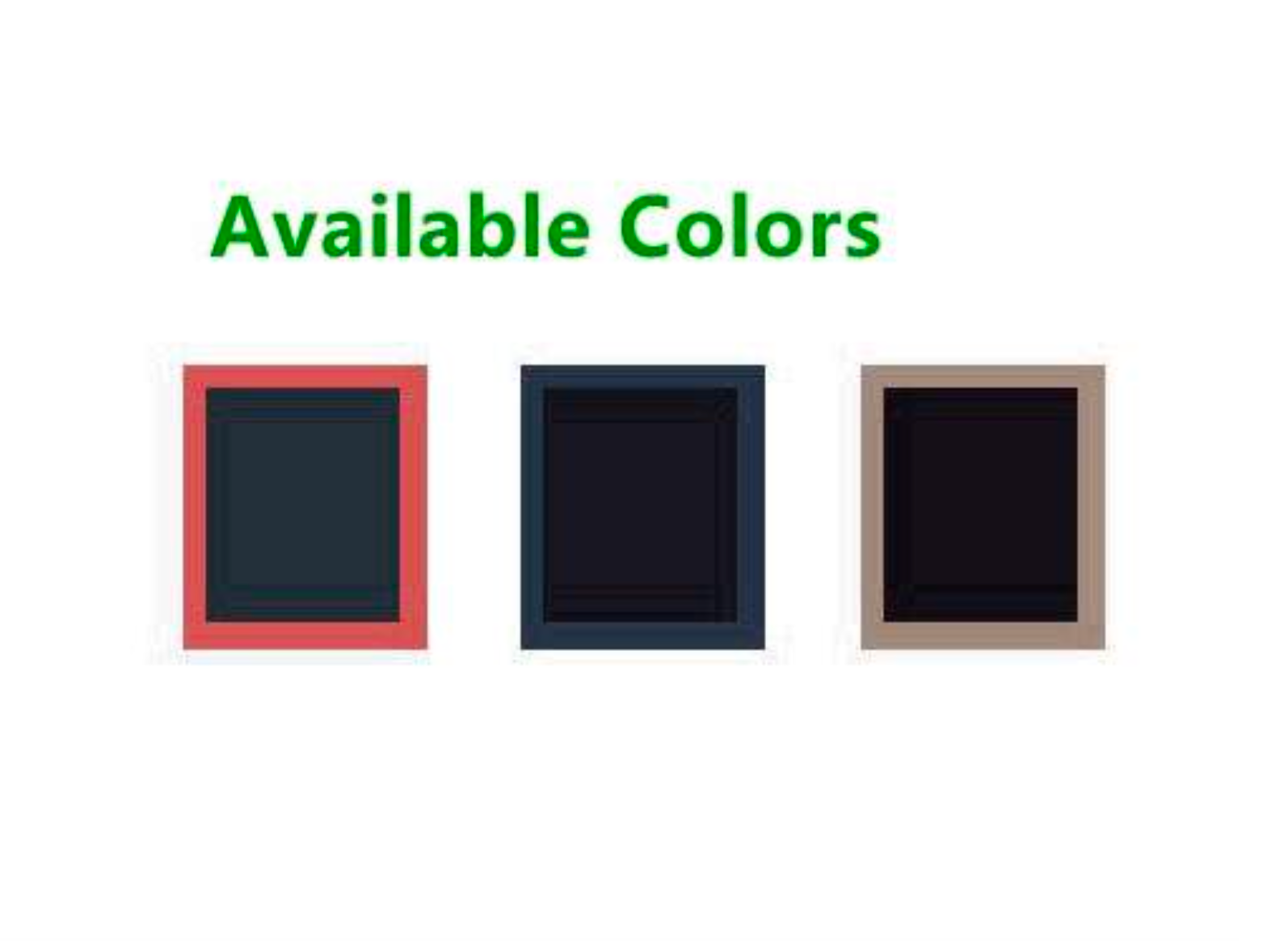

Available Colors: various options (see pdf file)
Dimensions: 810 x 400 x 20 mm
Weight: 6,5 kg
Operating temperature: -40 – 85°C
Max Power: 44 W
Power tolerance: +3 %
Short-circuit current: 9,84 V
Open-circuit Voltage: 5,43 V
Max power point voltage: 4,62 A
Max power point current: 9,34 A
Cell efficiency: 22 %
Cable (type, area, length): 2,5 mm2, 600 mm
Cells (number): 8
Cell size: 156 x 156 mm
Frame material: ceramic compound
Glass, type and thickness: high transmission, low iron, tempered glass 3,2 mm
Compression strength: > 2400 Pa
Water permeability: < 0,5 %
