DW - YL 90

DW - YL 90

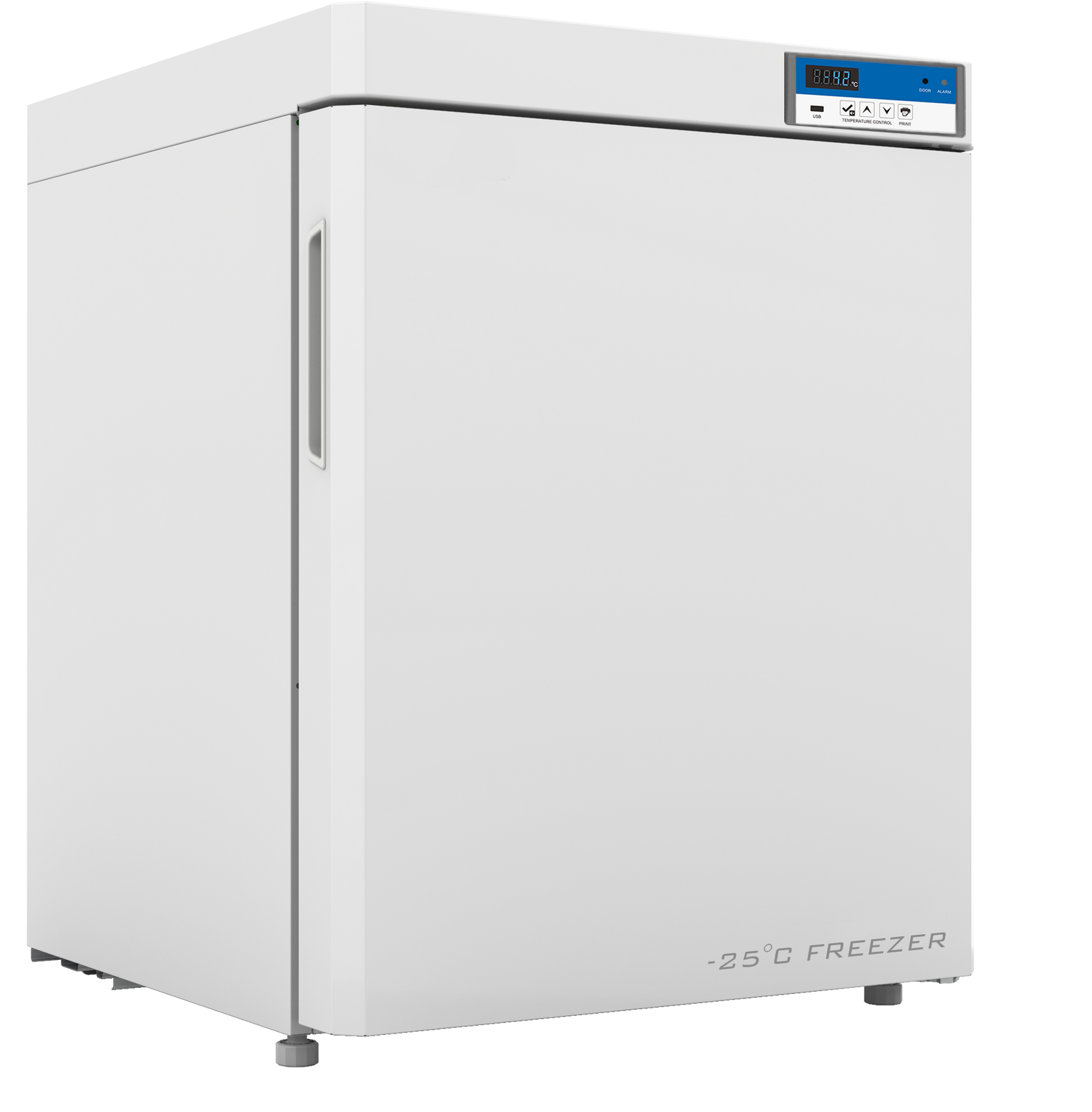

-25°C Biomedical Freezer


Characteristics:


Brand New Appearance, the Second Generation of High-quality Product
The polyurethane foam door has great thermal insulation performance.


Multiple alarms ensure safety of storage
The freezer has multiple audible & visual alarm functions, such as high/low temperature alarm, door ajar alarm, sensor failure alarm, etc. and can guarantee security of samples in a comprehensive way.


Temperature Control
The high-precision computerized temperature control system ensures an adjustable temperature within a range from -10 to -25°C inside the cabinet.


Control Panel
The high-definition digital temperature display can realize a temperature display accuracy at 0.1°C and is convenient for observation


Alarm Upgrading
The high temperature/low temperature alarm, door ajar alarm, sensor failure alarm etc. can ensure security of samples comprehensively


Refrigeration System
The compressor supplied by a famous brand and high-efficiency refrigerant R600a can reduce energy consumption to a large extent


Human-oriented

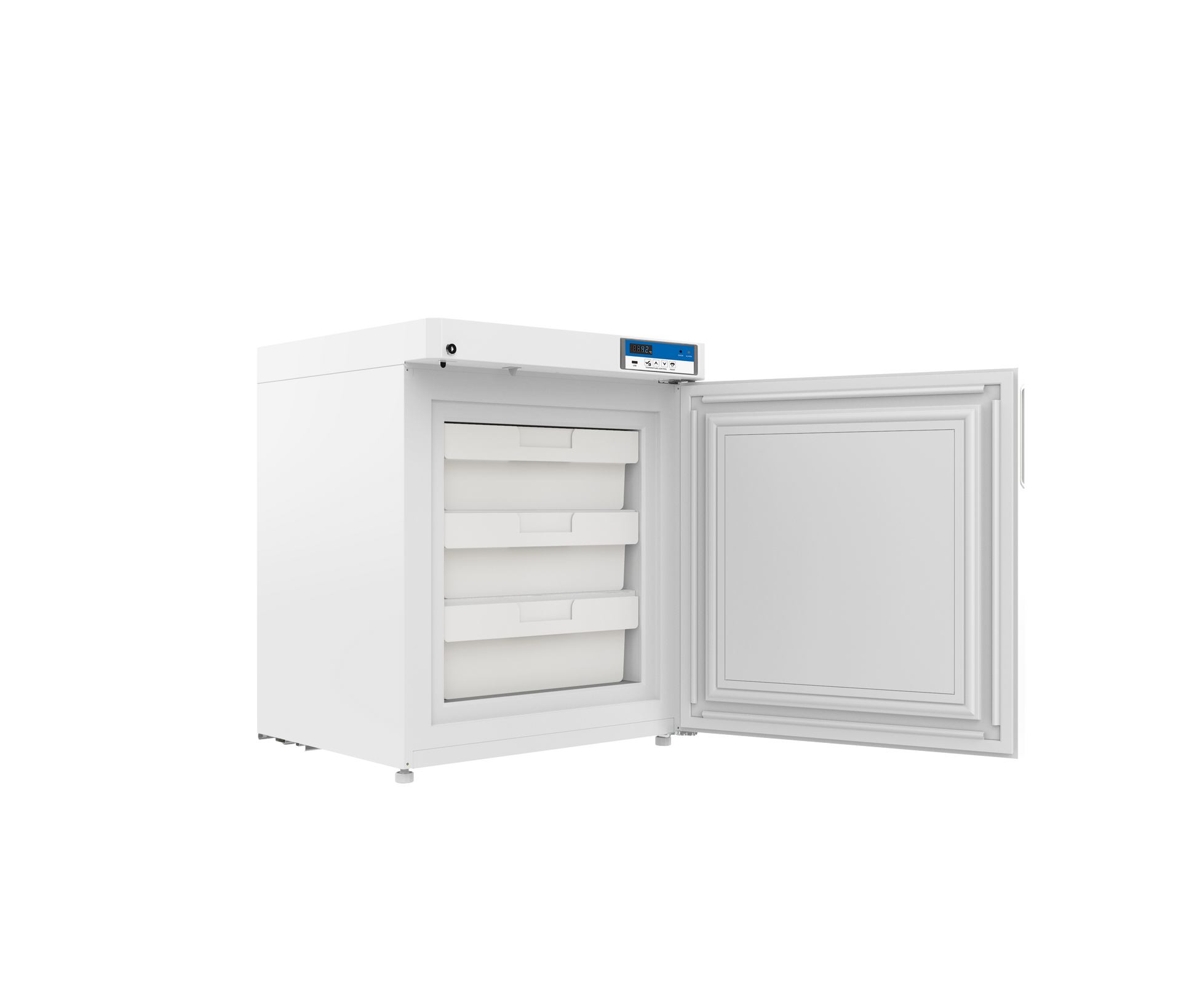

The invisible door handle can prevent damage during transportation and save space. The 3 drawers are convenient for separate storage of different types of things and can prevent cross influence among various things.


Scope of Application
Suitable for freezing of ice bars and storage of various things needing refrigerated storage such as blood plasma, reagent, etc. Suitable for use in hospitals, clinics, health and disease prevention systems, blood banks, laboratories in colleges & universities, the frozen food industry and catering industry, etc.





  • Cabinet Type: Upright
  • Capacity (L): 90
  • Internal Size (W x D x H): 500 x 485 x 532 mm
  • External Size (W x D x H): 700 x 669 x 854 mm
  • Package Size (W x D x H): 765 x 732 x 935 mm
  • Weight (N): 54 kg
  • Weight (G): 67 kg



Performance:

  • Temperature Range: -10 ~ -25ºC
  • Ambient Temperature: 16 ~ 32ºC
  • Cooling Performance: -25ºC
  • Climate Class: N
  • Controller: Microprocessor
  • Display: Digital Display



Refrigeration:

  • Compressor: 1 pc
    Cooling Method: Direct cooling
  • Defrost Mode: Manual
  • Refrigerant: R 600 a
  • Insulation Thickness (mm): L / R: 100, B: 100



Construction:

  • External Material: PCM
  • Inner Material: Sprayed aluminum plate
  • Drawers: 3 (ABS)
  • Door Lock with key: Yes
  • Access Port: 1 pc. Ø 25 mm
  • Casters: 2 + (2 leveling feet)



Alarm:

  • Temperature: High / Low temperature
  • System: Sensor failure
  • Construction: Door ajar



Electrical:

  • Power Supply: 220 – 240 V, 50 Hz
  • Power: 80 W
  • Power Consumption: 0,75 kWh / 24 h
  • Rated Current: 0,68 A
