JLD 6500

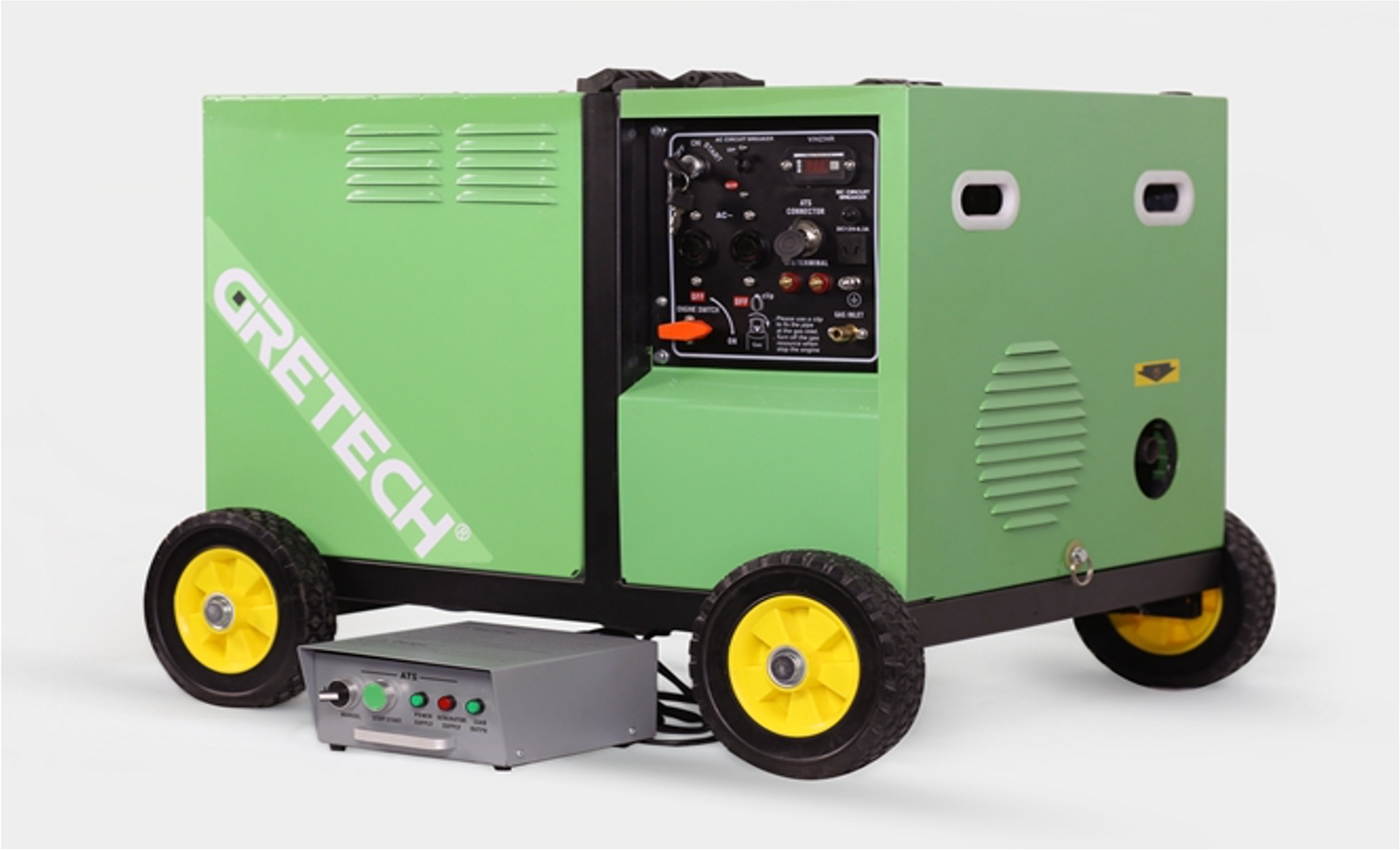

5kw Silent LPG/NG Generator

Frequency: 50 Hz

Rated Power(LPG): 5000 W

Max.Power(LPG): 5500 W

Rated Power(Natural gas): 4500 W

Max. Power(Natural gas): 4800 W

Rated Voltage(AC): 230 V

DC Output: 12 V / 8.3 A

Phase: Single-phase

Starting system: Electric start

Alternator: 100 % Copper enameled wire

AVR: In-Built AVR

Protection: Low oil alert system, Circuit break

Oil capacity: 1.1 l

Certificate: CE, ISO

Engine

Model No. JL 390 G / 389 cc / 13 HP / 4-Stroke / OHV

RPM: 3000 rpm

Noise Level dB(7m): 66 dB(A)

Fuel Consumption:

• LPG: 0.36 kg / kw.
• NG: 0.35 m3 / kw.h

Recommended input pressure of LPG / Natural gas: 2.0 – 6.0 kPa (0.29 – 0.87 PSI)

Weight (dry): 98 kg

Size: 770 × 550 × 575 mm

Option

with 3 phases: +usd20.8 , with 3phase & equal output: +usd41.6

with ATS Preset: +usd20, with ATS BOX: +usd63.5
